CFRP composite protective sleeve is suit for rotor protection sleeve of The max speed for carbon fiber protection sleeve is 100,000 rpm.
|Name||Material||Rotor speed||Working temperature|
|carbon fiber sleeve CFRP composite sleeve for electric rotors and generators||T700 carbon fiber||can be customized, Max 10,0000 rpm||max 180 degree|
Carbon fiber tube for rotor protction's Advantage:
1. light weight, high strength,Size can be customized.
2. Can bearing high temperature-- 180 degree.
3. Conductive heat quickly
4. Non-Conductive magnet

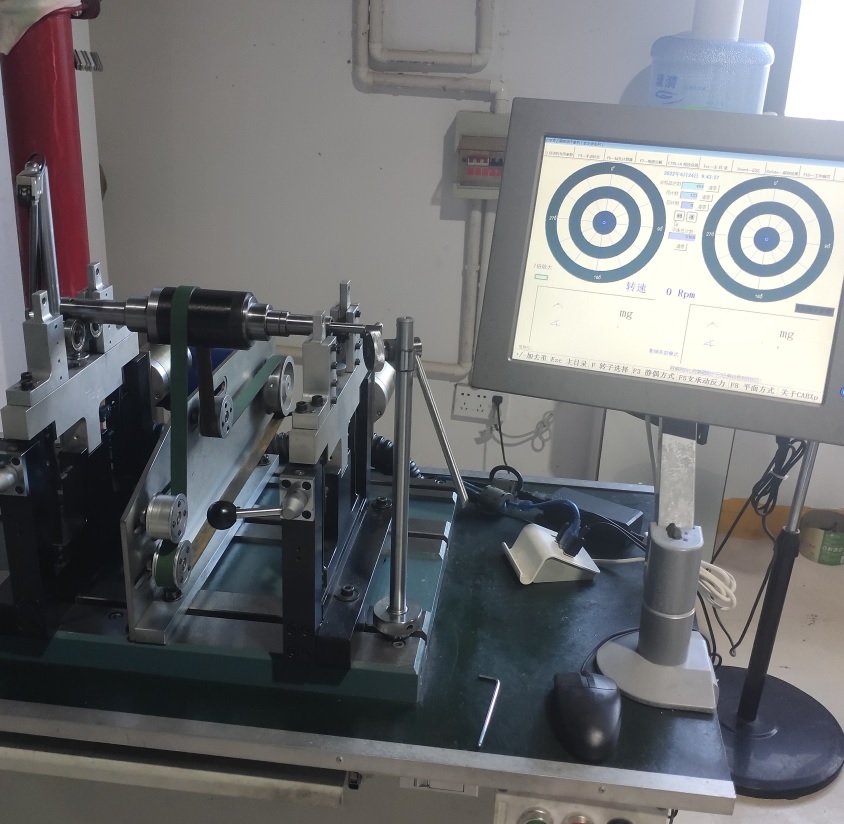

5. Good dynamic balancing when high-speed
6. permanent magnet synchronous & asynchronous Motor rotor speed 60,000 rpm, The centrifugal deformation 0.2 mm
It suit for the motor speed > 10,000 rpm
There are two way to produce the carbon fiber rotor cover:
1.Produce carbon fiber tube first ;Then Put the present carbon fiber tube cover the outside of rotor
2.Produce the carbon fiber cover directly outside of the rotor
We Zibo Xinnuo are professional supplier for CFRP composite protective sleeve for rotors. Just contact us for details! laura201226(at)hotmail(dot)com.
